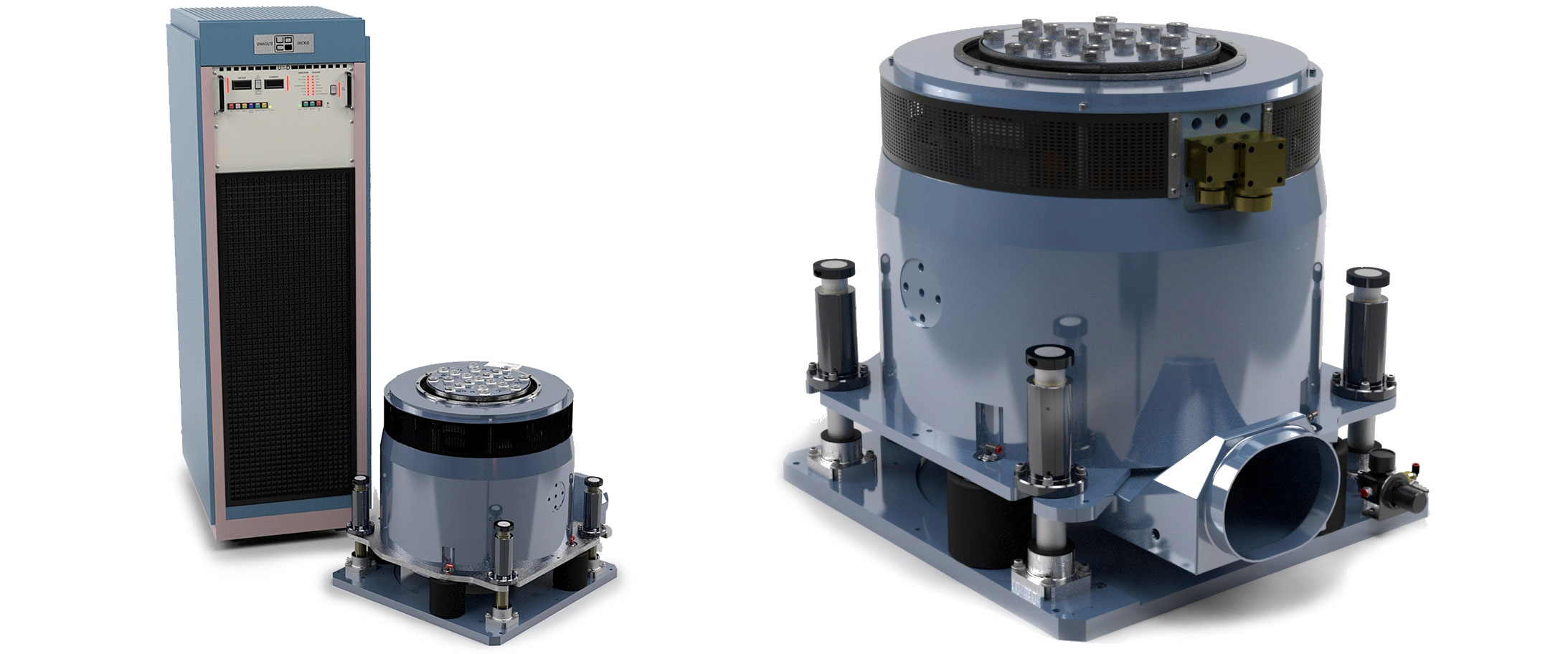

Model S402

Features

• 5,000 lbf sine & 4,000 lbf random (22.2 & 17.8 kN) force rating
• Lightweight high-strength armature, 50 lbs (22.7 kg)
• 2,500 Hz. armature resonance with 160 lb (72.6 kg) payload
• 100 g / 11 msec shock, up to 10 lbs (4.5 kg) load
• 2 inch (51 mm) displacement
• 800 lbs (364 kg) internal pneumatic load support
• 13.2 inch (335 mm) diameter armature, 12 inch (305 mm) outer bolt hole circle
• Special low-profile base configuration for integration to automated assembly line
• Completely air-cooled
• High-efficiency, Class D switching power amplifier w/ ulta-rugged Silicon Carbide (SiC) MOSFET Technology
• DC-3,000 Hz. frequency range
• APEX SL Control Systems
• SA-Command Link APEX SL / amplifier remote interface
